Sectionlift 50 Modular Spreader Beams

SectionLift 50 Modular Spreader Beams

  • Minimum Beam Length: 1m
  • Maximum Beam Length: 16m

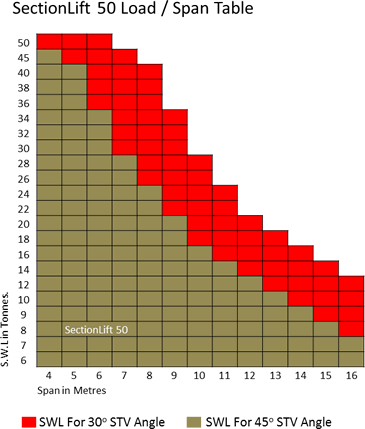

  • Maximum Load Capacity: 50 tonnes up to 6m Long
  • 40 tonnes capacity at 8m span

Please note the loads shown above are conservative indications. The spreader beams are capable of increased loads at particular spans. If you have a specific application which falls just outside the limits shown please contact us.

Calculation for SWL of Each Single Leg Top Sling.
(2 required.)

For 30o STV Angle = Load x 0.58
For 45o STV Angle = Load x 0.70
For Maximum SWL (50t) @ 30o STV Angle = 29t
For Maximum SWL (50t) @ 45o STV Angle = 35t

Headroom (H) @ 30o STV Angle = L x 0.87
Headroom (H) @ 45o STV Angle = L x 0.50
