Sectionlift Modular Spreader Beams

SectionLift Modular Spreader Beams - What are they?

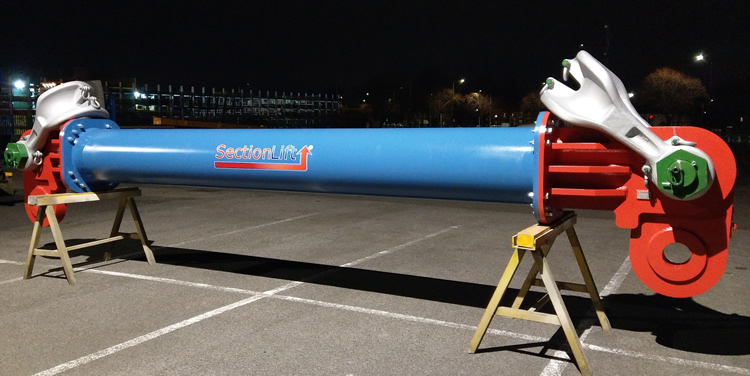

SectionLIft 420 Multi Beam Lifting Rig

SectionLift modular or sectional spreader beams are a versatile system of interchangeable components which are assembled to provide a wide array of lifting solutions from simple 2 point spreader beams to complex multi-beam lifting rigs. They can be assembled to form virtually any span or configuration of lifting rig allowing for a cost effective lifting solution for a wide range of lifting and handling applications. These type of beams have a number of advantages over traditional fixed span or fixed configuration lifting beams including:-

  • Cost effective - Only a small number of components are required to make up a variety of spans and configurations.
  • Versatile - Sectional lifting beams can be configured into virtually any lifting rig to enable the most complicated of structures to be lifted.
  • Storage - Sectional lifting beams can be dismantled and stored in a relatively small space saving valuable space in your premises.
  • Handling - These type of beams are able to be handled more easily than conventional fixed spreader beams.
  • Transport - Transport costs can be reduced as the beams can be shipped in component form thus requiring a smaller, more cost effective vehicle.
  • High lift capacity to size ratio - Relatively small modular lifting beams can lift high loads compared with fixed lifting beam configurations.

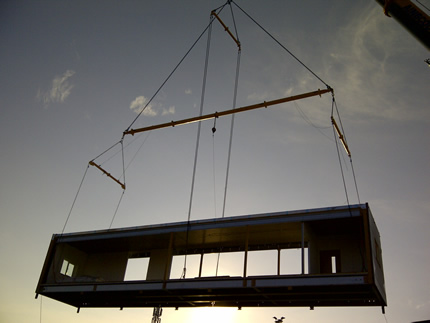

SectionLift 80 Lifting Rig

SectionLift 80 Multi-Beam Lifting Rig designed to install Portakabin's new range of Ultima modular buildings on site. The system is capable of 20 tonne SWL at 18m span, can accommodate 6 or 8 lower lift points and cater for center of gravity adjustments for both length and width.

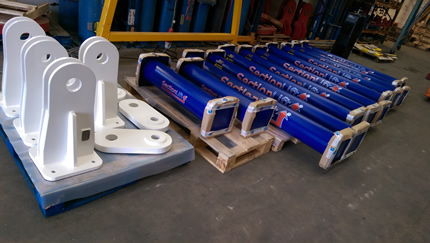

SectionLift 50 beams ready for dispatch Lifting Beam on Ship to Rig Transfer

SectionLift 50 Spreader Beam equipment ready for dispatch.

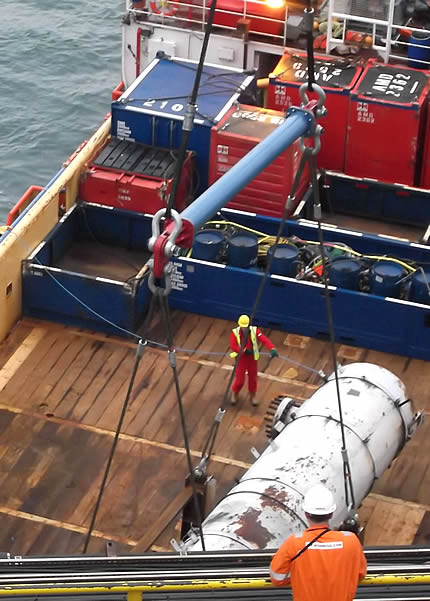

SectionLift 110 Lifting Beam on Ship to Rig Transfer

SectionLift 110 Spreader Beam carrying out a Ship to Rig transfer

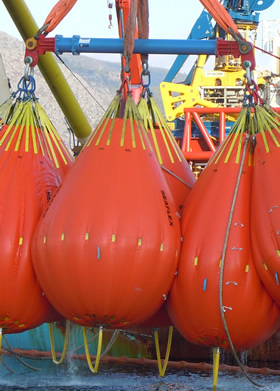

SectionLift 300 tonne waterbag test

300 Tonne Proof Load Test Using a SectionLift 240 Modular Spreader Beam

SectionLift 20 Spreader Beam

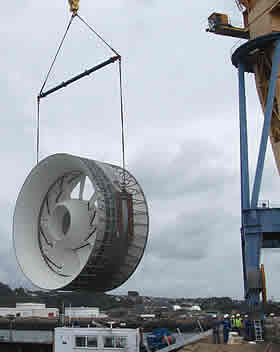

SectionLift 240 Spreader Beam 175 tonne SWL

SectionLift 240 Spreader Beam - 175 tonne SWL at 15.5m Span Loading a Sea Turbine For OpenHydro

SectionLift 10 system finished in customer coulours

SectionLift 10 beam finished in our customer colour scheme ready for dispatch. We are able to finish SectionLift beams in any colour you require. Please contact our sales team for information.

SectionLift 3 beam rig sunken barge recovery

SectionLift 3 beam rig being used to recover a Sunken Barge in London Docklands

SectionLift Modular Range - Key Features

SectionLift 6

  • Minimum Beam Length: 500mm
  • Maximum Beam Length: 4 metres Max.
  • Load Capacity: 8 tonnes at 2 metres
  • 6 tonnes capacity at 3 metres span

SectionLift 10

  • Minimum Beam Length: 500mm
  • Maximum Beam Length: 10 metres Max.
  • S
  • Load Capacity: 16 tonnes at 5.5 metres
  • 10 tonnes capacity at 7 metres span

SectionLift 20

  • Minimum Beam Length: 500mm
  • Maximum Beam Length: 12 metres Max.
  • Load Capacity: 24 tonnes at 5.5 metres
  • 20 tonnes capacity at 6 metres span

SectionLift 30

  • Minimum Beam Length: 1000mm
  • Maximum Beam Length: 14 metres Max.
  • Load Capacity: 34 tonnes at 6.4 metres
  • 21 tonnes capacity at 9 metres span

SectionLift 50

  • Minimum Beam Length: 1000mm
  • Maximum Beam Length: 16 metres Max.
  • Load Capacity: 50 tonnes at 6 metres
  • 40 tonnes capacity at 8 metres span

SectionLift 80

  • Minimum Beam Length: 1000mm
  • Maximum Beam Length: 20 metres Max.
  • Load Capacity: 80 tonnes at 11 metres
  • 50 tonnes capacity at 15 metres span

SectionLift 110

  • Minimum Beam Length: 1000mm
  • Maximum Beam Length: 22 metres Max.
  • Load Capacity: 170 tonnes at 8.5 metres
  • 110 tonnes capacity at 12 metres span

SectionLift 240

  • Minimum Beam Length: 1500mm
  • Maximum Beam Length: 26 metres Max.
  • Load Capacity: 240 tonnes at 10 metres
  • 180 tonnes capacity at 13 metres span

SectionLift 420

  • Minimum Beam Length: 1500mm
  • Maximum Beam Length: 32 metres Max.
  • Load Capacity: 400 tonnes at 3.5 metres
  • 240 tonnes capacity at 10 metres span

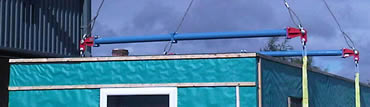

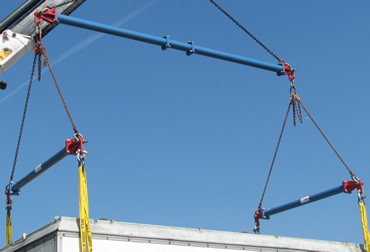

SectionLift 10 x 3 Beam Rig

SectionLift 6 Lifting Frame

SectionLift 10 x 3 Spreader Beam Rig Lifting a Modular Building

SectionLift 110 Modular Spreader Beam, 14m long
