SectionLift 30 Modular Spreader Beams

  • Minimum Beam Length: 500mm
  • Maximum Beam Length: 14m

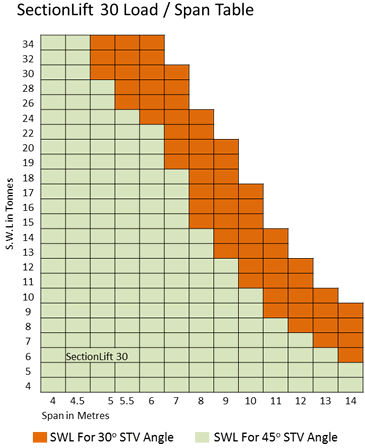

  • Maximum Load Capacity: 34 tonnes up to 6.5m Long
  • 20 tonnes capacity at 9.5m span

Please note the loads shown above are conservative indications. The spreader beams are capable of increased loads at particular spans. If you have a specific application which falls just outside the limits shown please contact us.

Calculation for SWL of Each Single Leg Top Sling.
(2 required.)

For 30o STV Angle = Load x 0.58
For 45o STV Angle = Load x 0.70
For Maximum SWL (34t) @ 30o STV Angle = 20t
For Maximum SWL (34t) @ 45o STV Angle = 24t

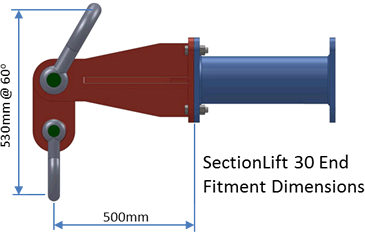

Headroom (H) @ 30o STV Angle = L x 0.87
Headroom (H) @ 45o STV Angle = L x 0.50
