Standard Lifting Beams
SectionLift have a vast library of standard designs for all types of lifting beams. These range from simple spreader beams to complex lifting solutions. Our standard lifting and spreader beams are cost effective and easy to use.

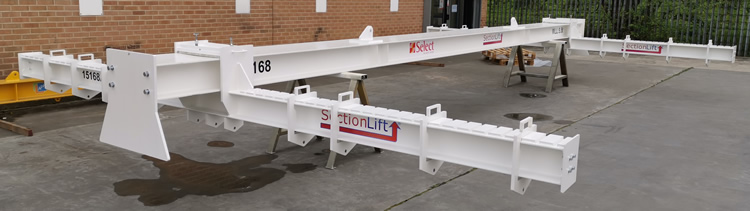

5.5 tonne adjustable H frame style lifting beam. This was deigned for Hinckley Point Nuclear Power Station to lift different sizes of rebar mat. It has a span of 9m and a width of 6m and is fully adjustable in both length and width. This beam was so successful as both time and labour were saved during the operations a further 2 were ordered and subsequently supplied.

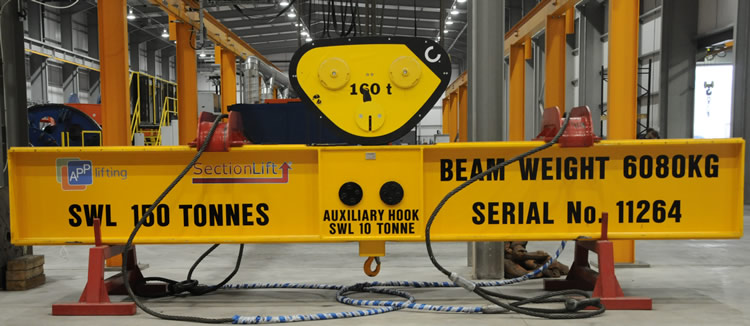

150 tonne lifting beam used for lifting full rope reels

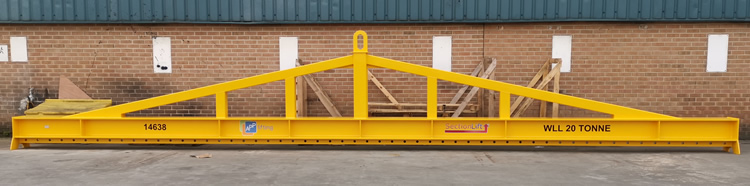

20 tonne low headroom single point lift multipoint lifting beam, 12m span. This was designed to work under a relatively low overhead crane. .

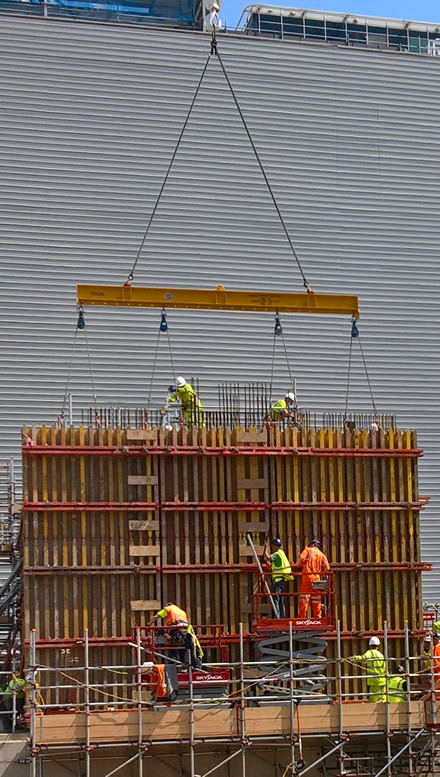

Typical multi-point lifting beam used in conjunction with sheave blocks for load equalization to lift a rebar cage. This system makes installation quick, easy and safe.

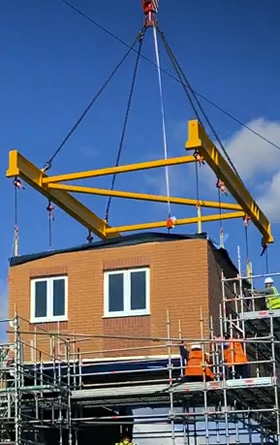

20 tonne lifting frame designed to lift prefabricated modular home sections into position on site. This frame can accommodate for different centres of gravity and different lengths of module removing the need for multiple beams.
15 tonne single point top, 4 point bottom lifting beam designed for moving railway equipment.
Bulk bag lifting beam for different bag sizes.
